4 Jaw Power Chuck

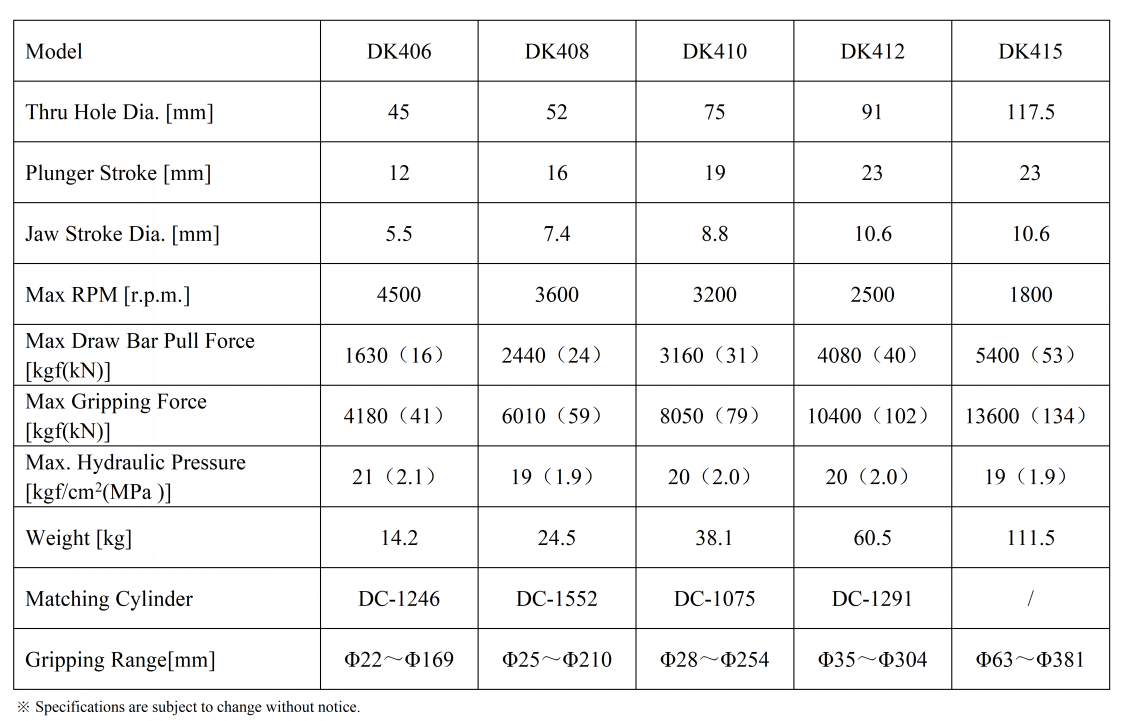

Product Details
| Model | DK406 |
| Thru Hole Dia. [mm] | 45 |
| Plunger Stroke [mm] | 12 |
| Jaw Stroke Dia. [mm] | 5.5 |
| Max RPM [r.p.m.] | 4500 |
| Max Draw Bar Pull Force [kgf(kN)] | 1630（16） |
| Max Gripping Force [kgf(kN)] | 4180（41） |
| Max. Hydraulic Pressure [kgf/cm2(MPa )] | 21（2.1） |
| Weight [kg] | 14.2 |
| Matching Cylinder | DC-1246 |
| Gripping Range[mm] | Φ22～Φ169 |

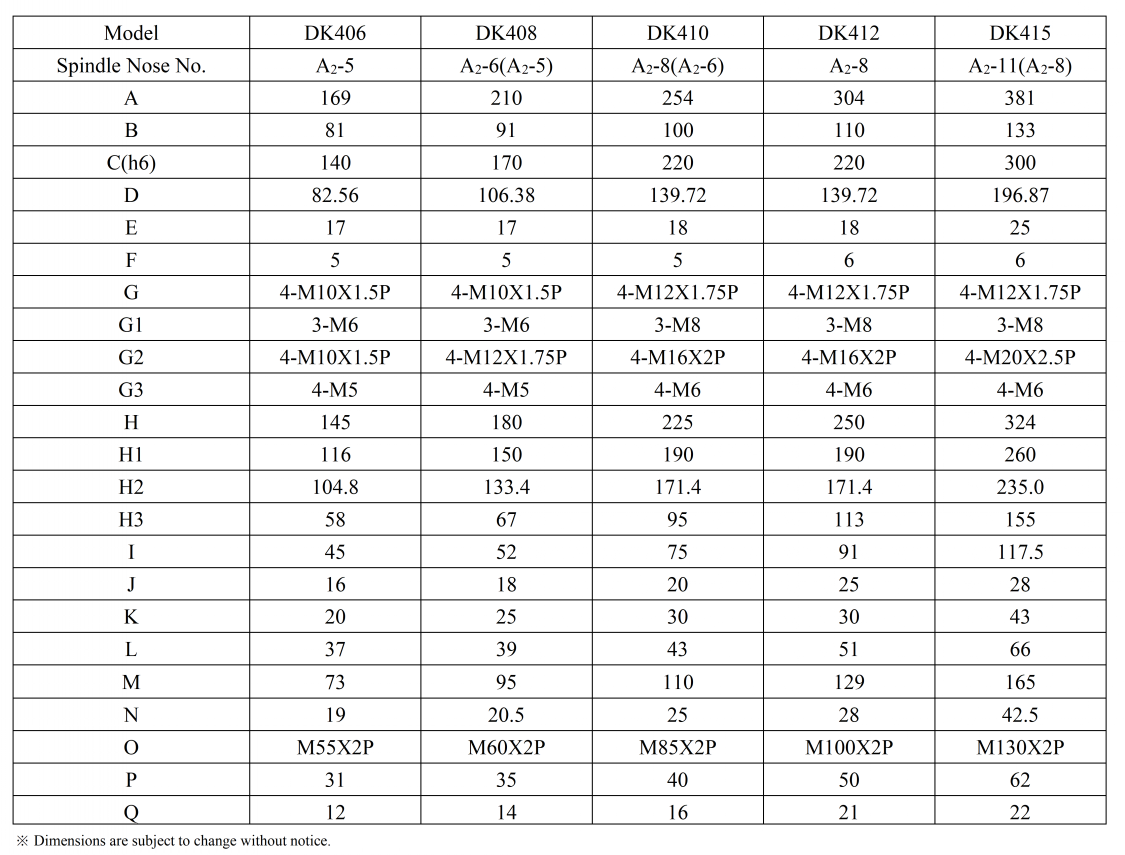

Model | DK406 |
Spindle Nose No. | A2-5 |
A | 169 |
B | 81 |
C(h6) | 140 |
D | 82.56 |
E | 17 |
F | 5 |
G | 4-M10X1.5P |
G1 | 3-M6 |
G2 | 4-M10X1.5P |
G3 | 4-M5 |
H | 145 |
H1 | 116 |
H2 | 104.8 |
H3 | 58 |
I | 45 |
J | 16 |
K | 20 |
L | 37 |
M | 73 |
N | 19 |
O | M55X2P |
P | 31 |
Q | 12 |
Can a power chuck be customized or modified to meet specific requirements or preferences?
Yes, customization can include changing the size, shape, or material of the chuck, adding additional features such as sensors or automation capabilities, or adjusting the gripping force or speed of the chuck. But samples or detailed drawings are required for the modification.
