Hydraulic Chuck Working
Product Details

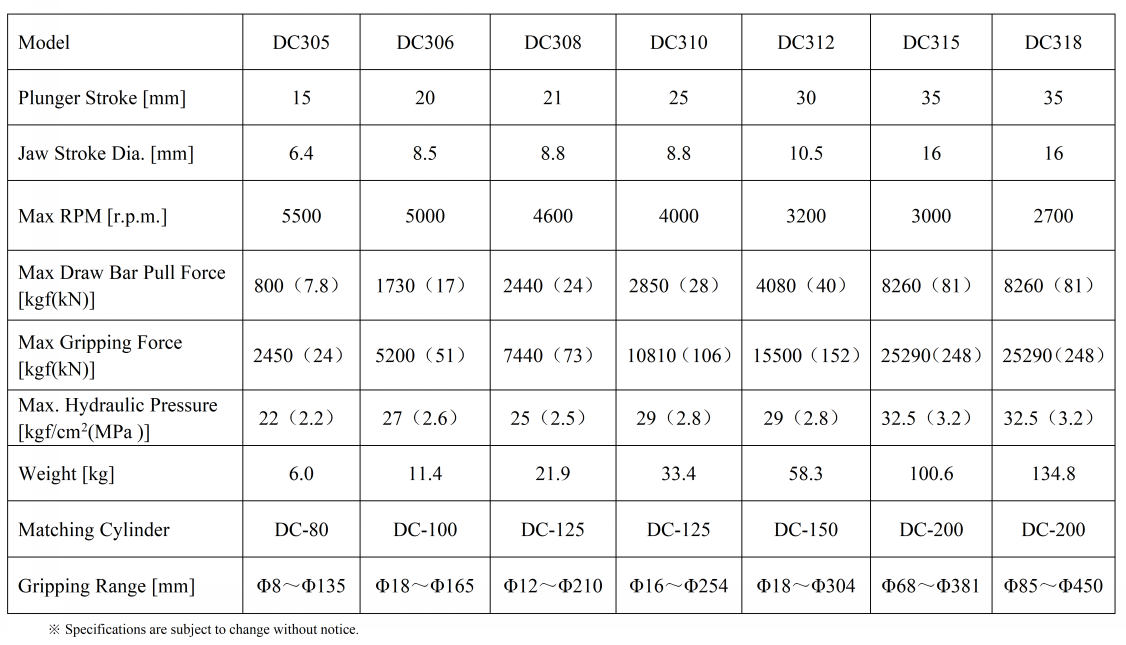

| Model | DC308 |
| Plunger Stroke [mm] | 21 |
| Jaw Stroke Dia. [mm] | 8.8 |
| Max RPM [r.p.m.] | 4600 |
| Max Draw Bar Pull Force [kgf(kN)] | 2440（24） |
| Max Gripping Force [kgf(kN)] | 7440（73） |
| Max. Hydraulic Pressure [kgf/cm2(MPa )] | 25（2.5） |
| Weight [kg] | 21.9 |
| Matching Cylinder | DC-125 |
| Gripping Range [mm] | Φ12～Φ210 |

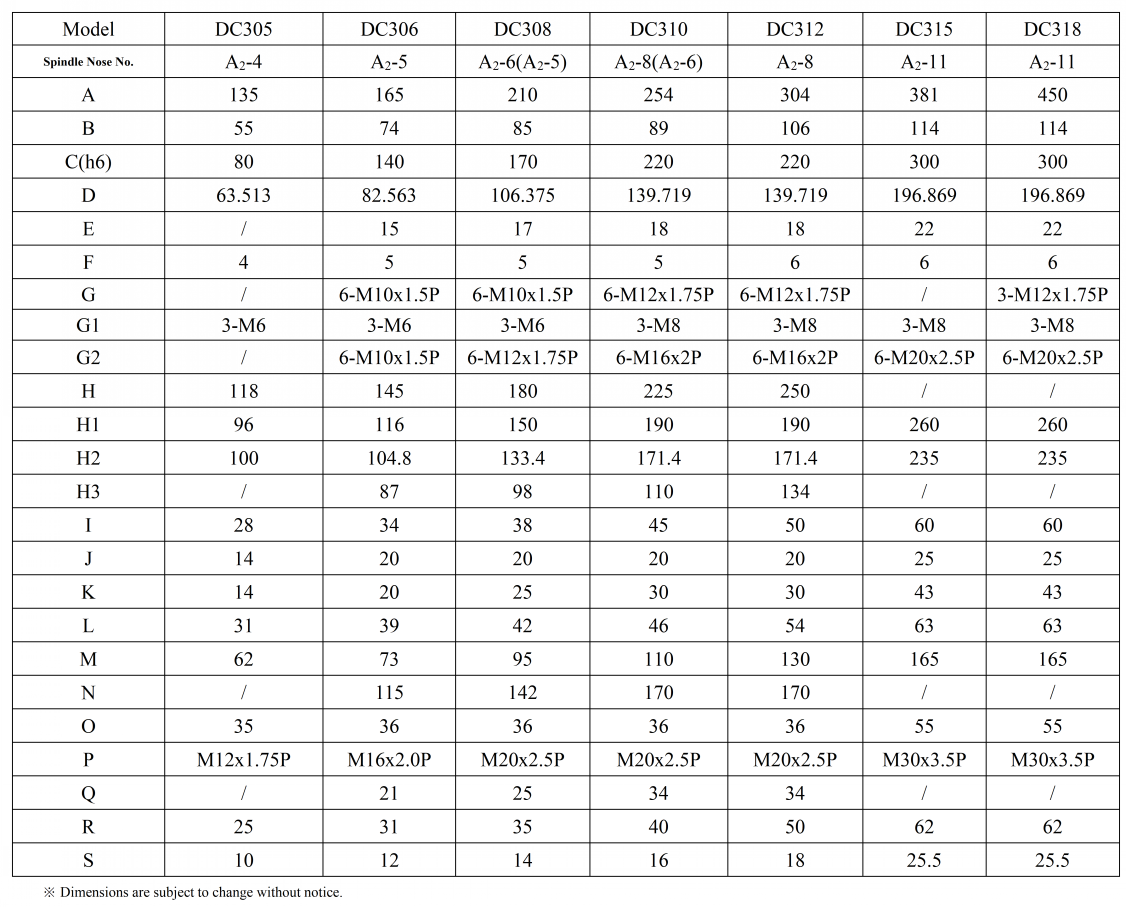

Model | DC308 |
Spindle Nose No. | A2-6(A2-5) |
A | 210 |
B | 85 |
C(h6) | 170 |
D | 106.375 |
E | 17 |
F | 5 |
G | 6-M10x1.5P |
G1 | 3-M6 |
G2 | 6-M12x1.75P |
H | 180 |
H1 | 150 |
H2 | 133.4 |
H3 | 98 |
I | 38 |
J | 20 |
K | 25 |
L | 42 |
M | 95 |
N | 142 |
O | 36 |
P | M20x2.5P |
Q | 25 |
R | 35 |
S | 14 |
Are there environmental considerations to take into account when using a power chuck, such as energy efficiency or emissions?
Yes, power chucks typically require hydraulic or pneumatic systems to operate, which can consume a significant amount of energy. Also, hydraulic systems used in power chucks can potentially leak hydraulic fluid, which can lead to environmental contamination if not properly managed. Furthermore, some power chucks may emit noise or vibrations during operation, which can impact the working environment and potentially contribute to noise pollution. Overall, it is important to consider those environmental factors when using a power chuck to minimize the environmental footprint of machining operations.
RELATED PRODUCTS
A hydraulic chuck tool holder is a type of tool holder that uses hydraulic pressure to securely hold cutting tools in place during machining operations, which is commonly used in CNC machining centers and other high-precision machining applications.
A hydraulic chuck is a type of workholding device commonly used on CNC lathes for securely gripping and holding workpieces during machining operations.
A power chuck is a type of workholding device commonly used in machining operations to securely grip and hold workpieces during turning, milling, drilling, or grinding processes. They are typically used on CNC lathes, machining centers, and other machine tools.
Hydraulic lathe chucks are commonly used in CNC lathes and other precision machining equipment to provide a strong and reliable grip on workpieces, ensuring stability and accuracy during turning, milling, drilling, or grinding processes.
