Big Through Hole Power Chuck
Product Details

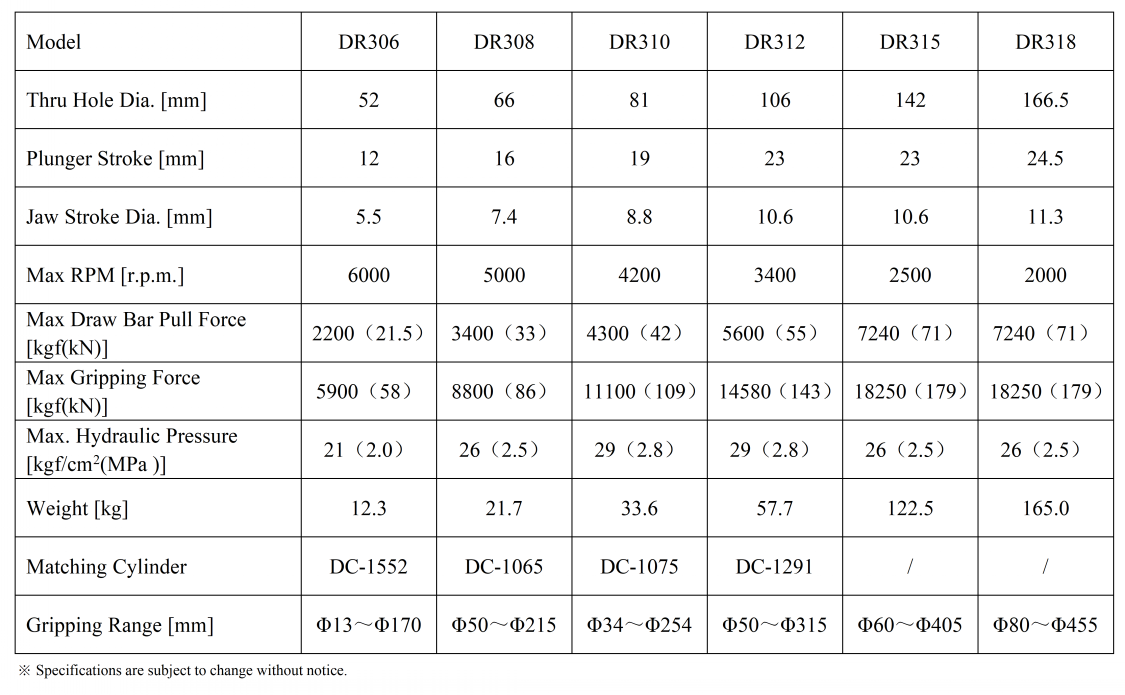

| Model | DR306 |
| Thru Hole Dia. [mm] | 52 |
| Plunger Stroke [mm] | 12 |
| Jaw Stroke Dia. [mm] | 5.5 |
| Max RPM [r.p.m.] | 6000 |
| Max Draw Bar Pull Force [kgf(kN)] | 2200（21.5） |
| Max Gripping Force [kgf(kN)] | 5900（58） |
| Max. Hydraulic Pressure [kgf/cm2(MPa )] | 21（2.0） |
| Weight [kg] | 12.3 |
| Matching Cylinder | DC-1552 |
| Gripping Range [mm] | Φ13～Φ170 |

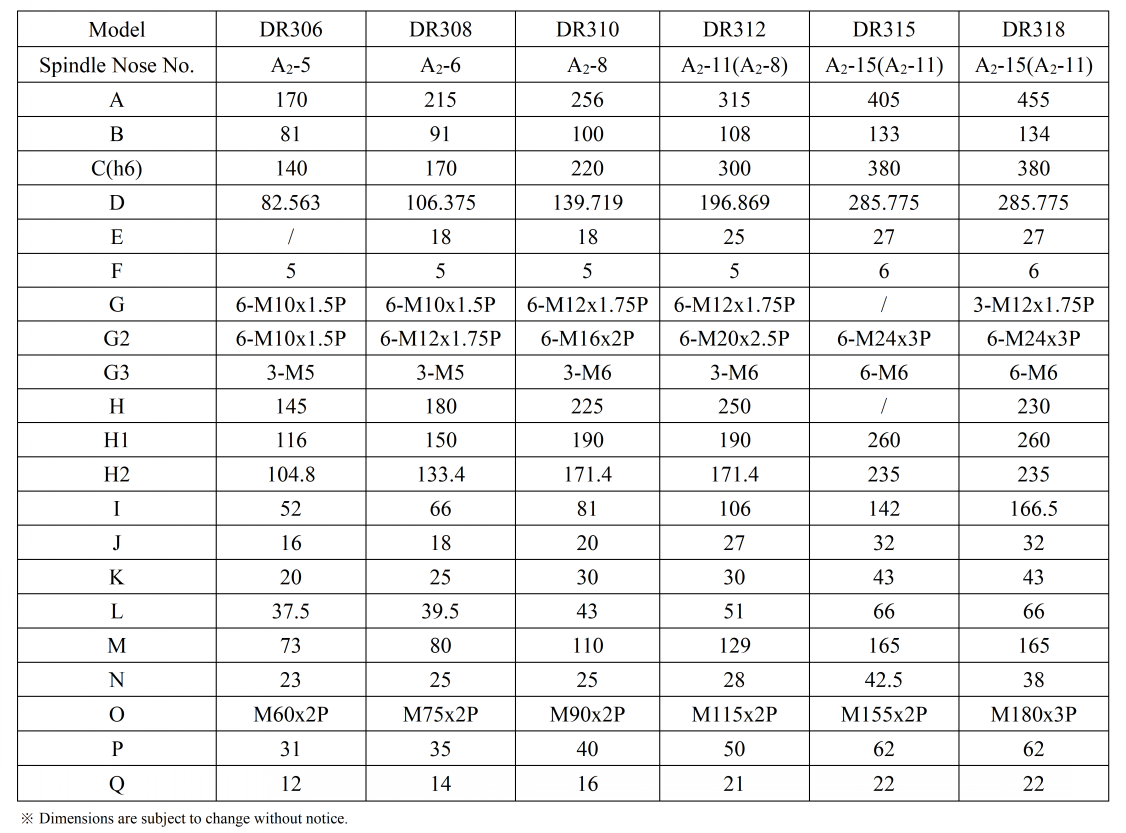

Model | DR306 |
Spindle Nose No. | A2-5 |
A | 170 |
B | 81 |
C(h6) | 140 |
D | 82.563 |
E | / |
F | 5 |
G | 6-M10x1.5P |
G2 | 6-M10x1.5P |
G3 | 3-M5 |
H | 145 |
H1 | 116 |
H2 | 104.8 |
I | 52 |
J | 16 |
K | 20 |
L | 37.5 |
M | 73 |
N | 23 |
O | M60x2P |
P | 31 |
Q | 12 |
