B-206 Hydraulic Chuck
Product Details
A hydraulic chuck is a type of workholding device commonly used on CNC lathes for securely gripping and holding workpieces during machining operations. Some key features and benefits of hydraulic chucks for CNC lathes include:
● High gripping force
● Quick and easy clamping
● Precision and accuracy
● Reduced vibration and chatte
● Compatibility with various workpiece sizes

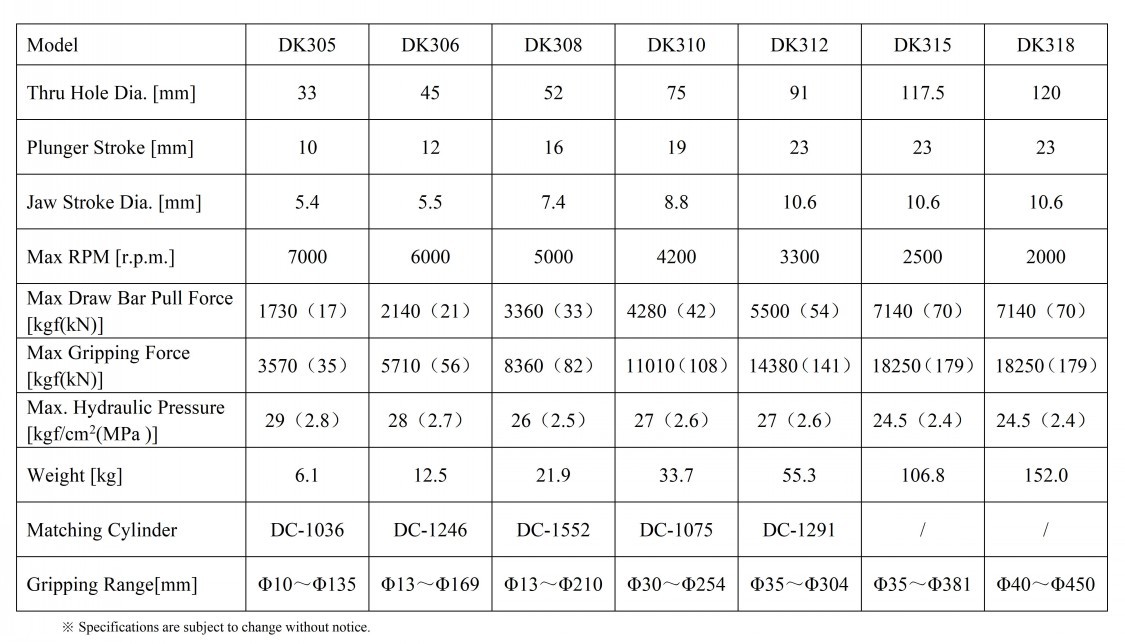

| Model | DK306 |
| Thru Hole Dia. [mm] | 45 |
| Plunger Stroke [mm] | 12 |
| Jaw Stroke Dia. [mm] | 5.5 |
| Max RPM [r.p.m.] | 6000 |
| Max Draw Bar Pull Force [kgf(kN)] | 2140（21） |
| Max Gripping Force [kgf(kN)] | 5710（56） |
| Max. Hydraulic Pressure [kgf/cm2(MPa )] | 28（2.7） |
| Weight [kg] | 12.5 |
| Matching Cylinder | DC-1246 |
| Gripping Range[mm] | Φ13～Φ169 |
Model | DK306 |
Spindle Nose No. | A2-5 |
A | 169 |
B | 81 |
C(h6) | 140 |
D | 82.563 |
E | 17 |
F | 5 |
G | 6-M10X1.5P |
G1 | 3-M6 |
G2 | 6-M10X1.5P |
G3 | 3-M5 |
H | 145 |
H1 | 116 |
H2 | 104.8 |
H3 | 58 |
I | 45 |
J | 16 |
K | 20 |
L | 37 |
M | 73 |
N | 19 |
O | M55X2P |
P | 31 |
Q | 12 |
Where can I buy your power chuck?
You can contact our professional sales via Whatsapp +86 159 6705 6767 or info@crovitchuck.com
PI will be sent to you for confirmation before your payment.
